CP International, Inc.

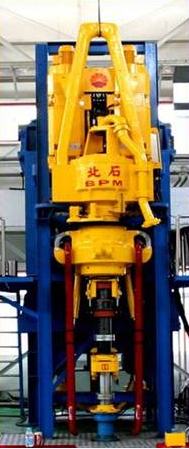

Top Drive
● Top drive adopts AC motors and is driven by VFD system.
● Top drive adopts heavy duty thrust bearings and special structure design.
● Link tilt assembly of pipe handler can be forward or reverse and/or rotating which is useful to grasp drill pipe and make main shaft closer to rig floor when drilling.
● Pipe handler is equipped with back up tong, which is of wide clamp range. IBOP won’t rotate when tilt.
● The mechanical, electrical, hydraulic and electronic technologies are integrated to improve the automation level.

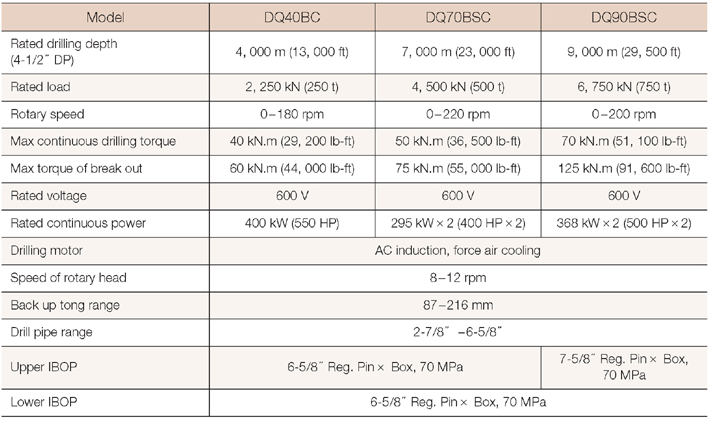

Models and Specifications


©2012 CP International, Inc. All rights reserved.
         Top Drives
750T/500T/350T
